An Inexpensive Schlieren System
Schlieren imaging, a technique for visualizing heat, sound, or pressure differences in air, is typically expensive due to the need for large optical mirrors. A new, low-cost alternative uses a plastic Fresnel lens, making the system accessible for students and educational settings. This simple design, based on Toepler’s single-field-lens arrangement, achieves effective results with inexpensive, readily available components.
- ▪Schlieren imaging detects disturbances in air by capturing variations in the speed of light caused by heat, sound, or pressure.
- ▪The system described uses a $20 Fresnel lens with a 250mm diameter and 1,000mm focal length, making it affordable and accessible.
- ▪Components include a white LED light source, a knife edge (or black paper), a camera, and a Fresnel lens arranged in Toepler’s single-field-lens configuration.
- ▪The setup allows students to experiment with the position of heat sources to understand system sensitivity and image quality.

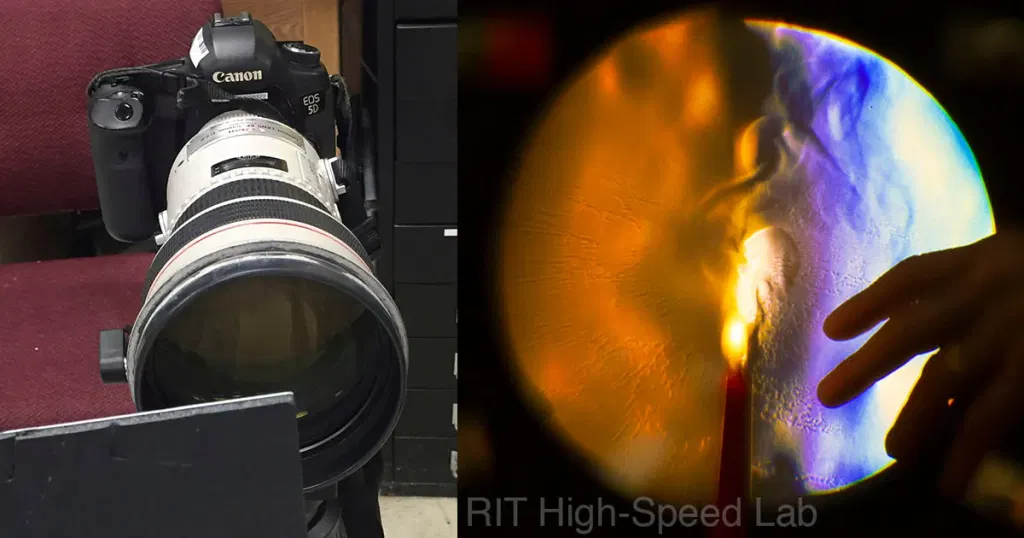

- ▪A 300mm camera lens focused on the heat source captures visible distortions caused by heated air bending light rays.
- ▪The LED is powered by a 5VDC supply with a 330-ohm resistor to prevent overheating.
