PCB Map Display Keeps An Eye On Family
A new PCB map display has been created to visually represent the California East Bay area. This innovative design incorporates an RGB LED array that lights up based on the location data of family members' mobile devices. The project is available for others to replicate through shared files on GitHub.

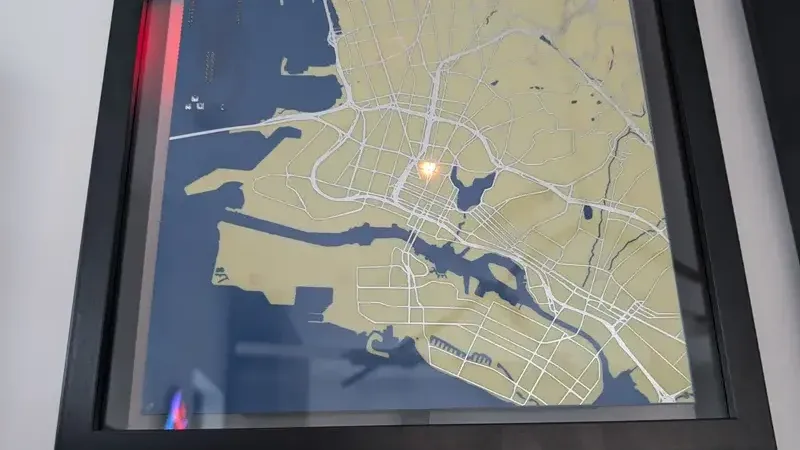

- ▪The PCB map features roads laid out as the top-side copper layer.
- ▪A 64 x 32 RGB LED array is mounted behind the PCB to illuminate locations.
- ▪The ESP32 controls the LEDs by receiving location data via MQTT.
